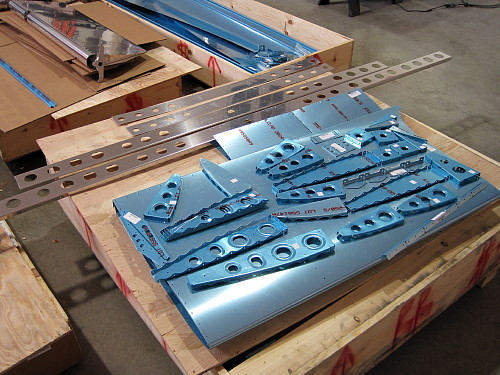

These are the parts to the
horizontal stabilator. It has a pretty complex spar structure.

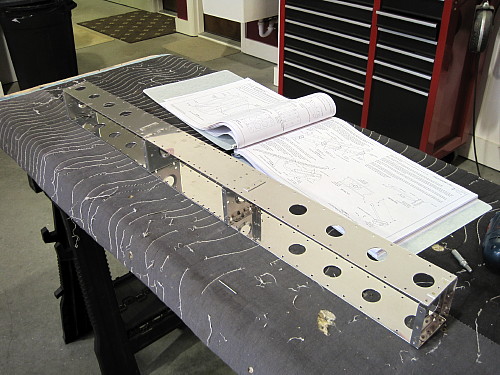

This is the basic box structure
for the spar.

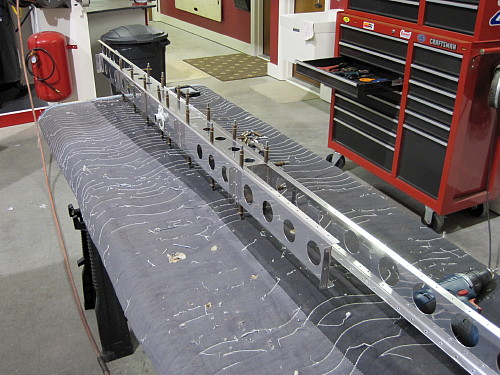

This is the box spar with the
front and rear stabilator spars added.

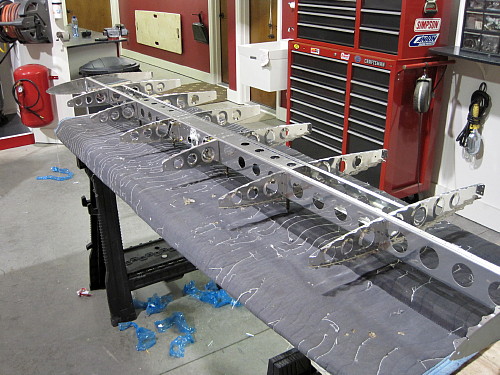

To that, all the ribs are added.

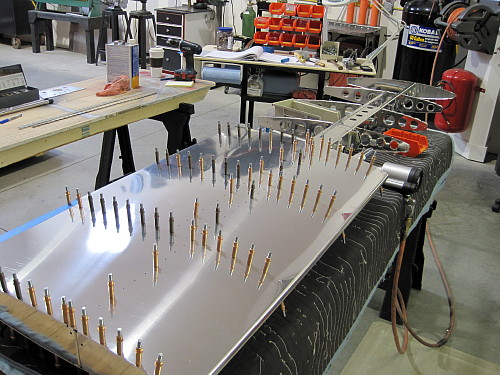

Then the skins are fitted,
prepped, drilled, and clecoed.

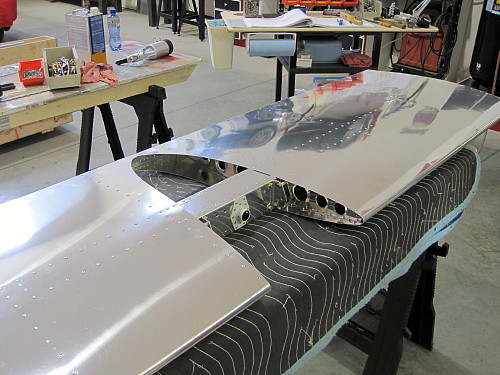

Here's the stabilator with the
skins riveted on.

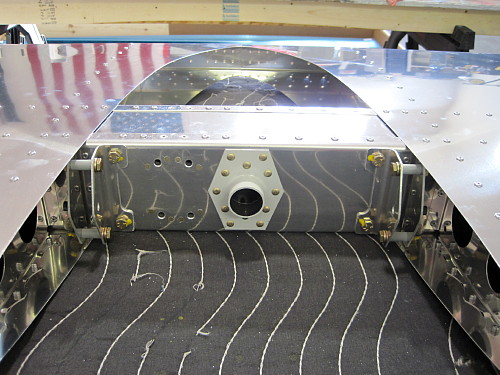

Here the forward face of the
spar structure.

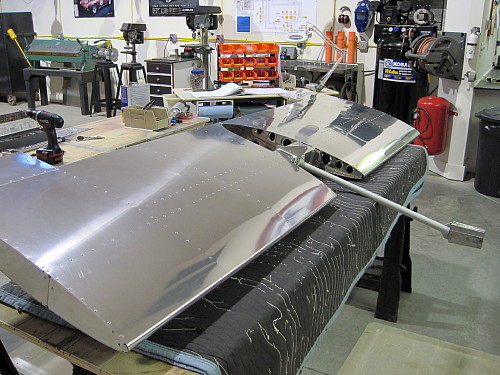

Stabilator is nor complete.
The long arm are the counterweights.
Next is the tail cone.
Those pictures can be found on the next page.
|
