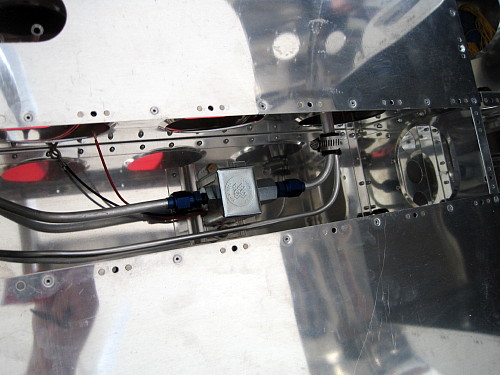

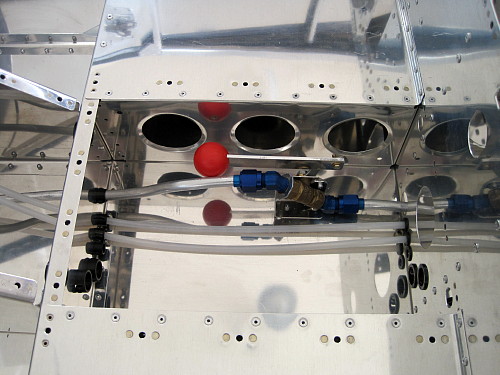

The fuel system is installed in
the center console. This is the fuel shutoff valve.

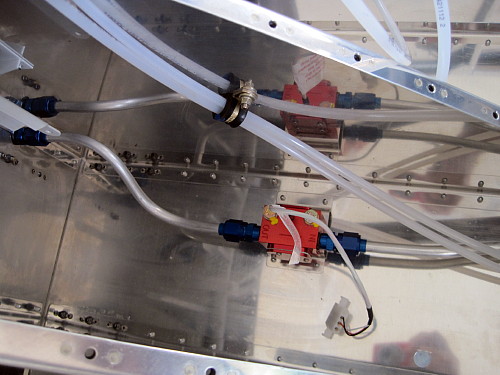

Baggage compartment center
console where the fuel pump is located.
Forward center console and the
fuel flow totalizer.

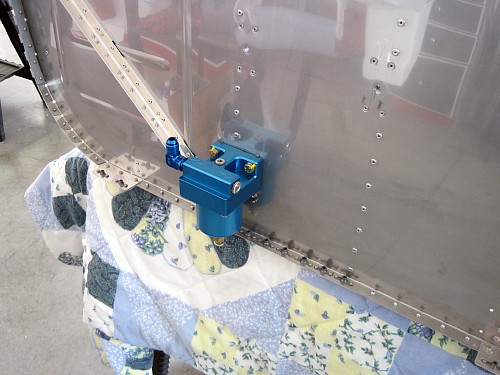

The gascolator is installed on
the firewall.

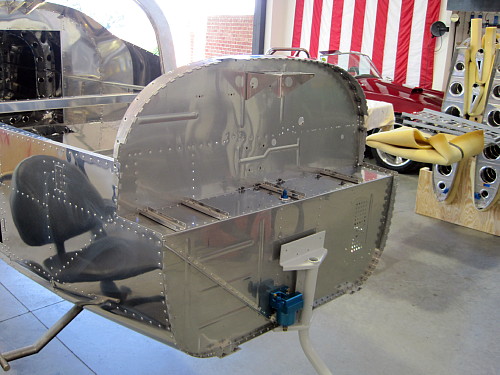

Upper firewall section
installed.

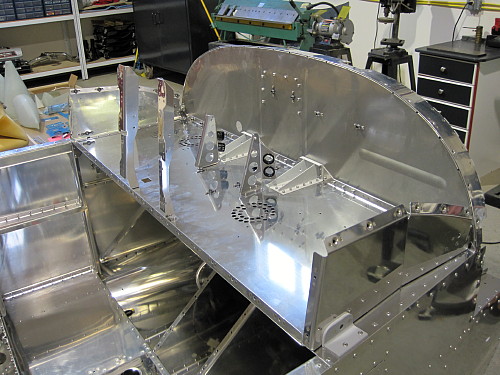

Instrument tray and brackets
installed, ready for the panel.

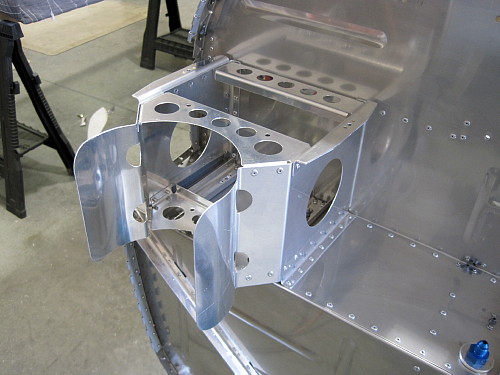

The brackets that hold the oil
tank are assembled onto the firewall.

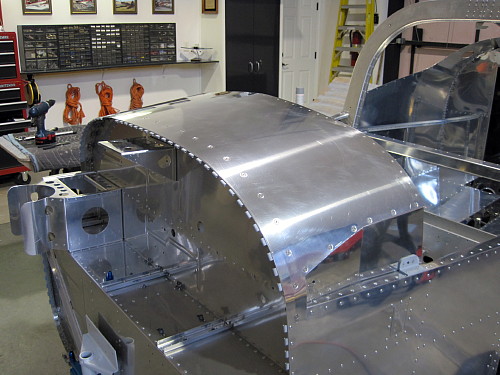

Then the upper fuselage skin is
attached.

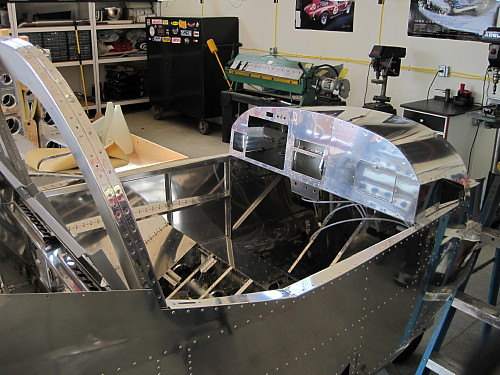

Finally, the instrument panel
and map box are installed.
The fuselage kit is now
completely installed.
Another view of the completed
fuselage.
This completes all the work from
the Fuselage kit. Work continues with the Finish kit. You can
see that work on the next page.
|
